Mind-C-Z7020
Introduction
- 1GB(32bit) DDR3 and 32MB QSPI Flash
- 16GB eMMC
- PL User I/Os: 60 pairs diff lines, 5 single-ended lines
- 5V~15V single supply
- Temperature: -40~85°C
- Dimensions: 35mm x 46mm

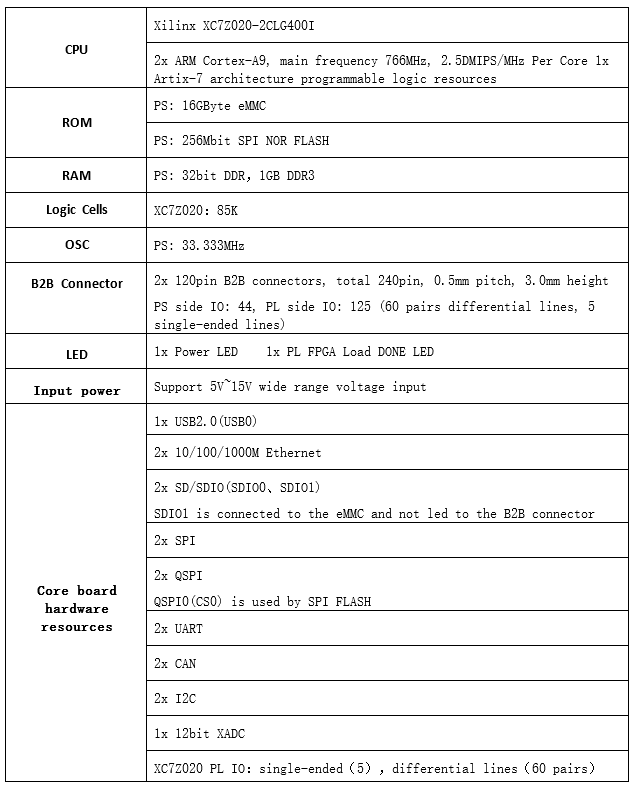

Hardware Resouces

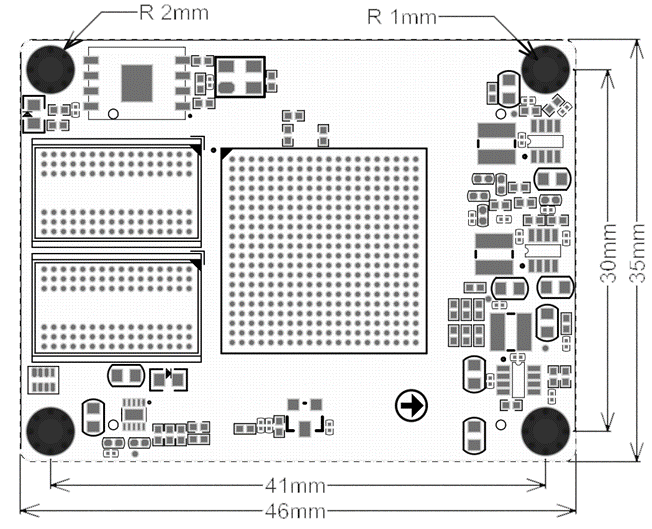

Mechanical Dimensions

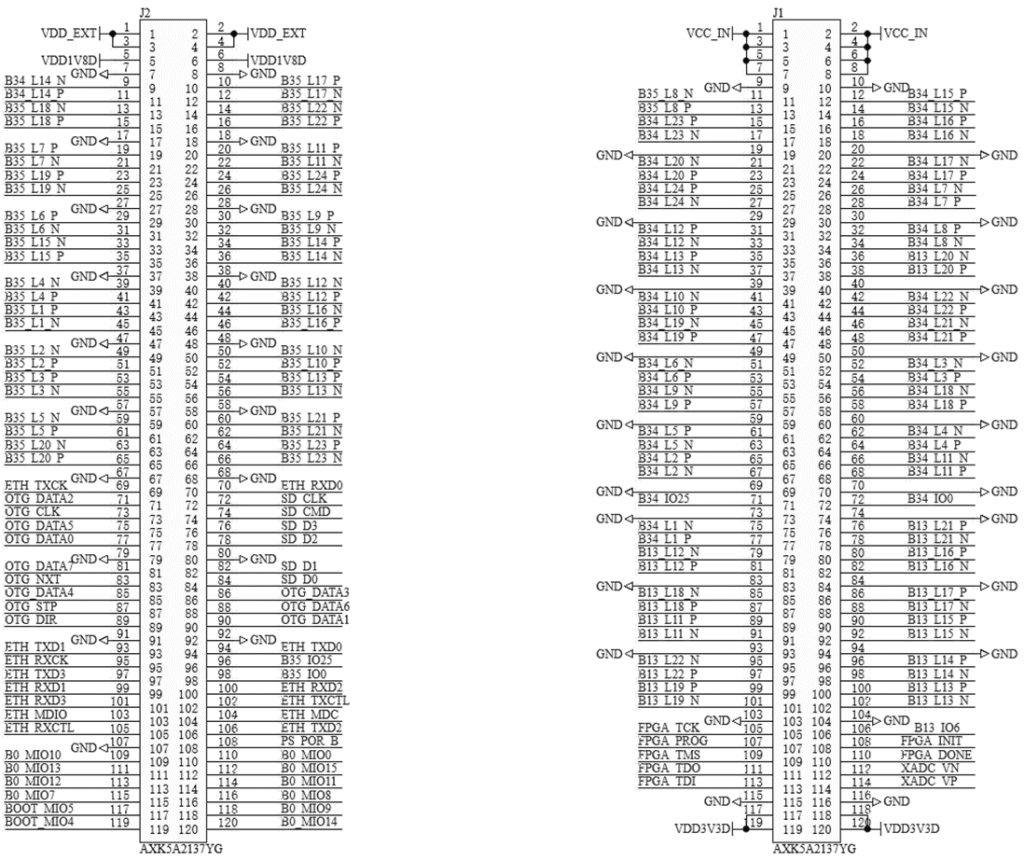

Pin Definition
